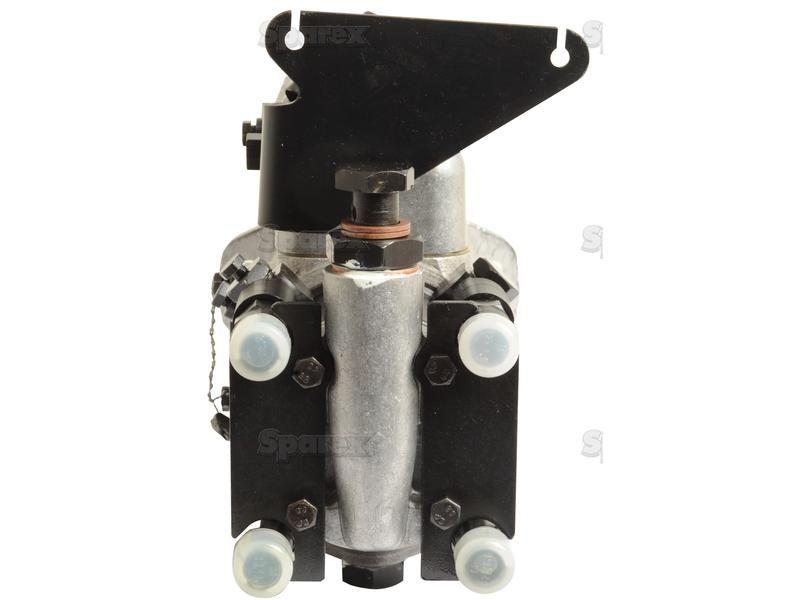

Case/IH 45 Series 745 Model Fuel Injection Pump Case IH Motor D239 | 3228166R91
Part Number: S.105968 - Categories: Fuel Injection
£625.93
per item, including UK VAT and delivery
Part Number: S.105968
Grade: Replacement
Part Details
Case/IH 45 Series 745 Model Fuel Injection Pump Case IH Motor D239 | 3228166R91 Case IH Motor D239, Bosch Equivalent
Technical Information
| Automatic advance range | -1° to +5° |
| Brand | Sparex |
| Engine Manufacturer | Case IH Motor |
| Engine Model | D239, Bosch Equivalent |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Hydraulic Timing Device | Yes |
| Maximum Peak Injection Pressure bar | 500 |
| Maximum Plunger Stroke mm | 1.5 |
| Maximum Power per Engine Cylinder kw | 20 |
| Maximum Pump Speed rpm | 2500 |
| Mechanical Governor | Yes |
| Number of Plungers | 2 |
| Number of Pumping Outlets | 4 |
| Plunger Diameter mm | 9 |
| Pressure bar | 0.1 |
| Pump rotation | Anti-Clockwise |
| Related Products | 105973, 44020, 44021 |
| Tariff Code | 8413308090 |
| Temperature Range | -20°C to 88°C |
Manufacturer Part Numbers
| Bosch |
|---|
| 0460304249 |
| Case IH |
| 3228166R91, 3228166R91EX |
